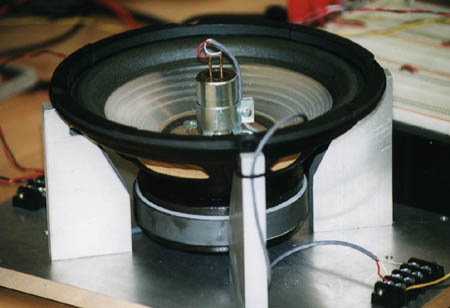

A view of the speaker and geophone platform. |
|
|

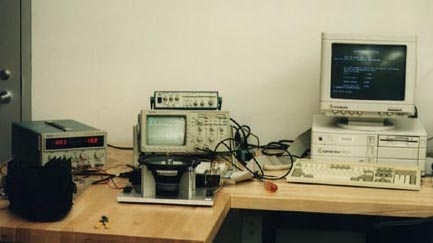

This is the whole experimental setup - also shown are the
power amp and the computer with an A/D board. |
|
|

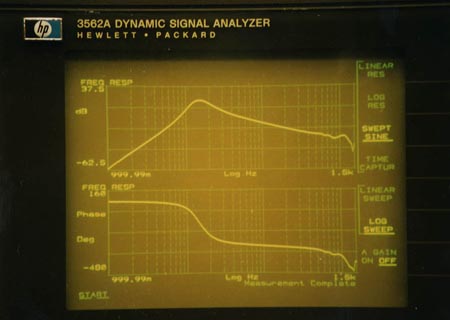

This is a frequency response plot of the speaker & geophone
platform. Note the effect of the sensor frequency cutoff at 14
Hz . |
|
|

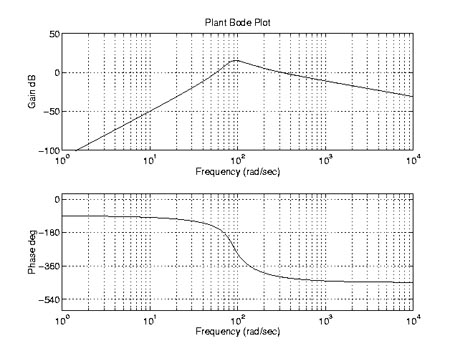

A MATLAB model of the plant, used in modeling the system. High
frequency poles were neglected. |
|
|

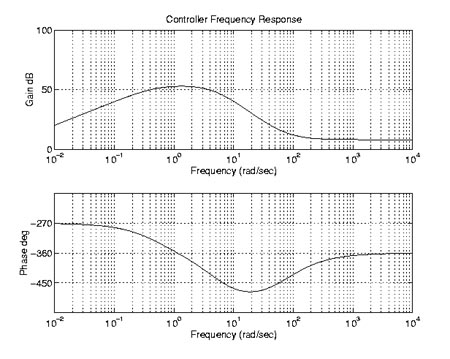

A bode plot of the controller I designed to compensate the system. |
|
|

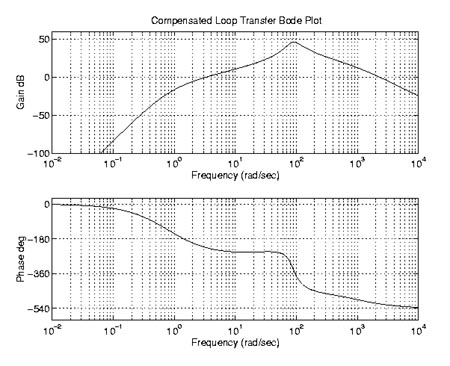

A finished plant with feedback control. Hmmm... I think this
particular plot has an extra pole at 1kHz. Oh well, I tried several
controller configurations. This one had better attenuation at
higher frequencies, but lower phase margin. It was somewhat unstable
toward low frequency disturbances, but rejected high frequency
noise quite well. |
|
|

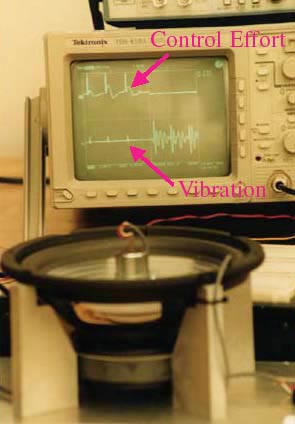

The final product - the bottom oscilloscope trace shows disturbances
of the cone with and withou the control system operating. Note
that the disturbances are severely attenuated if the system is
on. |
